MAKE YOUR OWN 4X4X4 LED CUBE WITH AN ARDUINO UNO

Part List

I’ll break this section down into two parts, the components that you’ll need to make the cube, and the tools that you’ll use to do it.

The component list is pretty much fixed, with a few exceptions, but don’t feel restricted by the tools list, if you can think of a better way of doing something then by all means do it that way.

Components

My cubes are made with parts ordered almost exclusively from eBay (because it’s cheaper to buy stuff from the Far East than it is from my local electronics store).  Of course, you can order from your local store if you’re in a hurry, but to be honest you’re not going to get “better” components than if you order from Hong Kong.

LEDs (Light Emitting Diodes)

These are the core of your cube, you’ll need 64 of them to make it, but you’ll probably find it cheaper to order a batch of 100.  This will also give you some spares in case you have any duff ones, or damage any during construction.

Standard LED sizes are 5mm and 3mm.  I’d tend to stick with 3mm as it allows you to see more of the inner workings of your cube (5’s can obstruct your view of what’s behind them).  You can get them in a variety of colours, but one thing you might want to consider is buying “diffused” LEDs.  Diffused LEDs shine light evenly in all directions, whereas traditional ones shove most of their light out the top.  You’ll get very different effects depending on which type you use.  There’s no right answer, it’s completely your choice.

Jewellers wire

Or something similar.  What you’re looking for is some solid core, uninsulated wire that can be used to join our LEDs together into grids of 4×4.  Typing “jewellery wire” into eBay should yield some suitable wire.  I use silver plated copper wire, but any conductive metal that matches the colour of your LED legs will do just fine.

Resistors

You’ll need 16 resistors to protect your LEDs from blowing when connected to your Arduino board.  The actual value of your resistor will depend on the specifications of your LEDs, which should be provided by the retailer.

Use an online checker to confirm the value of resistor that you should use.

For most 3mm LEDs, 100Ω or 330Ω (Ohms) should be sufficient. 330Ω is a very common resistor value, so you should be able to pick up a ream of them cheaply.

We’re dealing with quite low power circuits here, so you should be ok with resistors rated at 0.25W (watts).

Arduino Uno board (or compatible)

The core of this project will be an Arduino Uno micro-controller board.  The Uno is one of the more popular Arduino boards, and suits this project down to the ground.  The “official” version can be bought from major retailers like RS Components, but you can also buy compatible boards on eBay for a fraction of the cost.

In my experience, the “compatible” boards work fine for this project.

There’s nothing sinister about these boards, Arduino is an open-source platform.  In other words, any company can produce boards that are compatible with the Arduino software.

In this project I use a “Arduino Uno Ver 3” compatible board, which I recommend you do too.

Jumper wires

Get these either as a ribbon cable or as individual strands, it doesn’t matter.  You’ll need 20 cores and I recommend getting them around 20cm long so that you have room to make all the connections before you close the lid on your enclosure.

Don’t worry if it’s all in one ribbon, you’re going to be breaking it into parts to make things easier for yourself.

It’s also a good idea to get multicoloured ones, so that you can colour code your design, which will make it easier to plug the right wires into the right place.  For my first cube, I used all red wires, and it was a nightmare to connect everything up correctly.

Prototyping board

Sometimes called Veroboard or Stripboard.  This is a great way to quickly make electronic circuits without going to the effort of having a proper PCB (Printed Circuit Board) made up.

The type that you want has common strips, which is great for connecting components together without the need for wires.

In this project we’re going to use it to hold the LED array in place, and also to put our resistors in line before soldering on the jumper wires which connect to the Arduino.

Some form of case

In this instance I use a black ABS plastic case from Maplin, but any case will do.  Just so long as it’s around 40mm deep (room for the Arduino + jumper wires) and big enough for the Cube to site on top of.

Of course, you may have something else in mind.  You might be fabricating your cube onto an existing surface, or putting the cube inside a more complex project.  But, if you want a standalone unit then you’ll need a case.

For reference, the one I use is around 120mm x 100mm x 40mm.

Tools and equipment

You’re going to need to get a few bits and pieces together in order to complete this project.  Some of them are optional and you can do without, but I strongly recommend that you make use of all of the tools mentioned here:

  • Soldering iron / gun (+ solder)
  • Thin nose pliers (two pairs)
  • Wire cutters / strippers
  • Small saw
  • Hand drill / electric drill
  • 3mm / 5mm drill bit (depending on your LED size)
  • 1.5mm drill bit
  • Set square
  • Ruler / measuring tape
  • Masking tape
  • De-soldering tool
  • An electric detailing tool

Once you’ve gotten all of this together you’re ready to build your cube from start to finish, so take a deep breath and click on the next page to see how the cube is put together.

Constructing a former

The cube is made up of 4 layers which are each made up of 16 LEDs in a square configuration, so the first step is to put together four identical layers which will be soldered together later.

The layers are made by bending the cathodes (short legs) of the LEDs by 90 degrees and then soldering them all together to form a common cathode.  You’re then left with one common cathode and 16 individual anodes (long legs) per layer.

If you try and construct the layers by hand you’re going to have a really bad time, so the first thing to do is make a former which will then be used to space out the LEDs evenly.

Before you can make your former, you need to know how far apart to space the holes, and the easiest way to do that is to work out how long the cathodes are when bent.

Most LEDs have a little nub on the legs about 3mm from the LED body.  It’s designed to provide a good base for soldering, but it’s also an excellent way to make sure you bend each LED at the same point.

Cube - LED Bend

My advice would be to make the bend just before the nub, which came out at about 23mm on the LEDs I’m using.

If you want, you can bend the cathodes flat against the base of the LED, which will give you greater distance between them, but will also increase the possibility of damaging the LEDs while soldering them together.

The distance between your LEDs needs to be just a tiny bit smaller than the length of the bent cathode, so that you’ve got some overlap to solder the cathodes together.  But it doesn’t need to be any more than a 1mm overlap.

Now that you have this measurement, you can space out the holes in your former.  I tend to scribble down the sums on a piece of masking tape, that way the measurements are available if you forget.

Cube - Measurements

The easiest thing to do is use the lid of your box, and I’m going to assume that’s what you’re doing, but if you can’t do that then just use a piece of scrap wood.

Use some masking tape to cover the surface of the box, this will protect from pen marks and flux/solder.

Next, use a set square and ruler to mark out grid lines on your box.

Then, take a 3mm or 5mm drill bit (depending on your LED size) and drill out the 16 holes for your LEDs.

Cube - Box Drilled

Finally, at one end of the grid, drill four 1.5mm holes inside the gridlines as shown in the photo below.  These extra holes will be used to connect the four common cathodes to the Arduino using strands of jewellers wire.  You can drill these holes wherever you want, but it’s a lot easier to solder the strands of wire if they’re near the edge of your cube.

Your former is now complete, next stage, soldering together LEDs!

Creating the LED layers

As mentioned previously, your cube will be made of four identical layers, each with 16 LEDs, so you’ll need to follow the steps on this page four times in order to create enough layers for your cube.

The first thing that you need to do is a bit tediuos and boring, but it’s definitely worth doing.  You need to test all 64 of your LEDs.

As with all things in life, you’ll occasionally get a lemon, and it’s better to find out you have one now rather than waiting until it’s in the middle of your cube.

Not to fear though, there are two really easy ways to test LEDs.

Firstly you can get a CR2032 coin cell (like in a car remote keyfob) and press the legs of the LED against either side of it.  Do it the right way round and your LED should light up, do this 64 times and you’re done.

Or, you can use the “Blink” program on your Arduino board and then connect your LEDs one by one across pin 13 and the ground pin.  I recommend doing it this way as it’s easier to test your LEDs once they’re soldered into a cube.

Cube - LED Test

Once your LEDs are all known working, you’ll need to bend the cathode legs of all 64.  You’ve worked out where you’re going to bend the leg on the previous page.  You need to bend to a 90 degree angle, it doesn’t matter which way as long as they are all the same, but don’t bend so that the bent cathode is in line with the anode, otherwise you won’t be able to solder the cathodes together.

Once you’ve bent all the legs, lay four of the LEDs into your former as shown below.

Cube - First Row

If you’ve done it correctly, you should find that the cathodes line up nicely with a small overlap for soldering them together.

Solder the cathodes together using as little contact and as little solder as you can.  Remember, more solder doesn’t equal a stronger join, it can actually cause a less conductive join which will cause you problems later on.

Cube - Solder Joint

Repeat for another three rows of LEDs, filling the former.

Cube - Four Rows

Now you’ll need to use the jewellers wire to connect the four rows together into a layer.

Quick tip on the wire; it was probably delivered on a spool so will have some bends and curves to it.  To get rid of these quickly, cut a length of wire and then hold it at either end with the pliers.  pull hard on either end and you’ll feel the wire stretch slightly.  This will get the wire 99% straight.  If you manage to snap the wire, try again but don’t pull so hard, you beast 😉

Cube - Wire

You could use four strips of wire per layer, but you really only need two – one after the first strip of LEDs and a second just before the last strip of LEDs.  You could put them elsewhere, but doing it like this will give the greatest illusion of a joined up cube.

Cube - Layer Finished

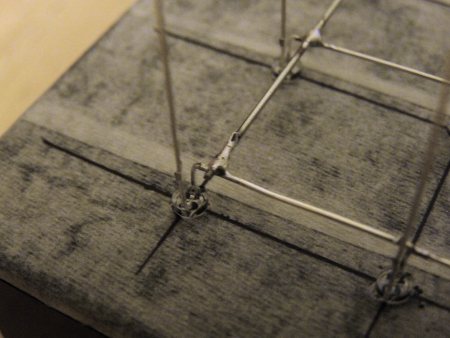

Solder the jewellers wire to the cathodes (horizontal), this will give you one common cathode and 16 individual anodes.

Make sure that you snip off any excess wire hanging over the edge of your cube, you can also snip off the four protruding cathode legs that stick out of the edge of the layer.

Cube - Common Cathode

Now carefully remove the LEDs from the former and repeat three more times to give four individual layers.

Soldering the layers together

Now that you have your four individual layers, it’s just a case of soldering them together to form a cube.

we’re going to do this by joining the 16 anodes of each layer together so that we’re left with 16 common anodes and 4 common cathodes.

The first thing to do is bend the last 1mm of each anode toward the center of the LED, this will help us join the layers together as it means the anode can run down the side of the LED below and tuck back in to join up with the anode below.  You only have to do this with three of your layers, as the fourth layer will be on the bottom and won’t be connecting to another LED.

Cube - Bend Anode

The next thing to do is make sure that all of the anodes legs are pointing straight up.  This will make it easier to solder the layers together, and the end result will look more “square” as well.  If any legs aren’t quite there, just give them a gentle prod near the base to get them pointing in the right direction.  If you push from the tip of the leg then you might bend the leg, which will make the problem worse.

Once you’ve bent the legs, put one layer back in the former.

From here there are two ways to complete the task:

1) You can create some cardboard formers that will ensure the correct distance between layers, then lower another layer on top of the first and solder the anodes.  This works just fine but is time consuming and can be a bit tricky.

2) You can do it by eye.

I’ve never bothered with formers on my cubes, I just take my time and hope for the best, but by all means use some strips of card if you’re not sure.

Which ever way you choose, my advise is to solder the corner anodes together first.  After you’ve done the corners, take a step back and look at the layers; are they parallel?  If not, de-solder whichever corner is out of alignment and move it into the correct position.  Once you’re happy with the alignment, solder together the rest of the legs.

I would always advise that you re-check the connections using the “Blink” program and some jumper wires between layers.  Not only will this test your solder joints, but it’ll also check that none of the LEDs have been damaged by the heat.

Repeat this for the remaining two layers and your cube will be complete.

Fabricating and Circuitry

If you’ve used your case as your former then you should be able to flip the cube over and drop the protruding anodes into the holes.  If you’ve used a different surface as your former, you’ll need to get the drill back out and drill holes in your case using the same measurements.

Either way, you should be left with 16 pins poking through a surface.

Cube - Box Lid

The next thing you’ll need to do is put in some uprights to connect the four cathode layers to the Arduino, and that’s where the four tiny holes you drilled in the former come into play.

Run four pieces of (straightened) wire through from the inside of your case to the cube.  Bend the end of each wire to a 90 degree angle with pliers, then solder one of the wires to each of the four layers.  It doesn’t really matter where as the layers are electrically common, just try and make it look nice.

Now you’ll have 16 anode wires and 4 cathode wires poking through the underside of your case.

The basic circuitry from here goes:

LED anode –> Resistor –> wire –> Arduino board.

LED Cathode –>Arduino Uno

How you achieve that will be up to you, and it will depend on what type of case you’re using.  I would recommend using prototyping board, but there’s actually nothing to stop you just soldering the components together and wrapping them in insulating tape.  But, using prototyping board will always give a stronger connection, and you can also use it to hold the LED cube in place.

Cube - Resistors

In my cubes, I tend to cut up strips of prototyping board and soldering the LED anodes to that.  There’s no need to cut any of the tracks as the LED leg will connect to the same rail as one side of the resistor, and the jumper wire to the Arduino will connect to the rail on the other side of the resistor.

Doing it my way means four resistors and four jumper wires per piece of board.

You can do it all on one piece of prototyping board, but try and push 20 LED pins through a single piece of board at the same time and you’ll see why my way is just as good.

Cube - Circuits

I digress.  Whichever way you choose, just make sure that each anode is connected to a resistor.  You don’t need resistors on the four cathode layers.

Once your LED cube is fixed to the board (or at least connected up as above), you’ll need to connect your jumper wires to it.

The process is the same whether you’re using individual strands or a ribbon.  I recommend using wires of around 20cm in length, as this will give you enough room to connect everything to the Arduino without obstructing yourself.

Once you’ve soldered the wires to the 16 anodes and 4 cathodes, it’s time to connect them up to the Arduino.  You need to connect each wire to the correct port on the Arduino for the program to work, so check the diagram below which shows the LED cube as viewed from the top.

Cube Pinout
Cube Layers

Connect up the jumper wires to the Arduino and the circuit is complete.

Of course, you’re going to need to find a place to put the Arduino board inside your case (and make a hole in the side for the power connector), but before you do that it’s a good idea to check that everything is working.

Click on to the next page and I’ll take you through the programming aspect of the cube

Programming the Arduino

The Arduino needs to be programmed so that it knows what to do with each of the various connections on the board.

To do that you’ll need to download the Arduino software and install it on your PC.  Then follow this user guide to connect up your Arduino and install the drivers on your PC.

If you just want to get your cube working, then the easiest thing to do is just download my code from here.  This gives you a program that lasts about 30 seconds and loops round over and over.

Once you’ve downloaded the code, open up the Arduino software and click File–>Open.  Navigate to the code you downloaded and open it.  Then click the “upload” button at the top of the window.

If the animations don’t appear correctly, you may have mixed up some of the pins on the Arduino, so disconnect it and double check.  Once you’re positive everything is in the right place, plug it back in and the animations should display properly.

If you’re happy with that, and everything’s working, then congratulations; you’re done!  click through to the next page and finish up your project!

If you want to make your own animations, read on and I’ll explain how it works.

So, when you opened the code in the Arduino software, you may have noticed the large block of code in the middle that looked a bit like this.

CubeCode

Don’t worry too much about anything else on the page, just focus on the large block of code in the middle, as this is what’s causing the patterns on the cube.

The easiest way to think of it is as an animation.  Each change on the cube represents a frame of animation, and each line of code represents one frame.

In each line there are 64 1’s and 0’s, split into 16 blocks.  If there is a 1 then that signifies that an LED is to be lit in that frame, if there’s a 0 then it won’t be.

The first block represents the four LEDs on the bottom row on the left hand side.

The second block represents the four LEDs on the bottom row, to the right of the ones in the first block, and so on.

Within each block, the 1st number represents the furthest LED away from you, the 4th number represents the LED closest to you.

The number at the end of the line indicates how long that frame will last for.  Make the number higher and the frame will last longer.  Make it lower and the frame will last less time.

So, in this way, you can indicate which LEDs will be on and off during each frame of the animation.

If you’re not entirely sure what I’m getting at, here’s a tip:  Delete all but the first line of the animation, then change all the values to “0” except for the first one, then hit upload.

You should find that the LED on the bottom row, on the left hand side, at the back will light up.  Of course, it all depends on which side you’re sat on.

Try changing some other values to “1” and see where it gets you, you should be able to work out quite quickly how the system works.

Now, it’s simply a case of writing multiple rows to give you more frames of animation.  You can literally turn each LED on and off independently of the others.

Try coming up with your own animations, my advice is to use comments to give yourself a reminder of what each animation does.  You can type a comment into the program by typing “//” and then the comment.

The Arduino will ignore any text that is after the “//” so you can type anything you want in there.

You can literally spend hours of your life coming up with new patterns, so before you get too engrossed, lets finish off the build and then you can get back to this part.
